Get started with vehicle routing

A tutorial for getting started with vehicle routing.

Almost heaven, West Virginia
Blue Ridge Mountains, Shenandoah River
Life is old there, older than the trees
Younger than the mountains, growin' like a breeze

Country roads, take me home
To the place I belong
West Virginia, mountain mama
Take me home, country roads

-- Bill Danoff / John Denver / Taffy Nivert Danoff

Nextmv offers a comprehensive set of tools for solving vehicle routing problems. To get started with vehicle routing you have two alternatives:

  1. Nextmv routing app: work with all the features available via the input.
  2. Platform: get access to a fully customizable solution, in addition to all the features available via the input.

Both options use the nextroute template as a starting point (for information on migrating to the nextroute template schema from a legacy template, checkout our guide). After familiarizing yourself with the two alternatives, please continue with these next steps:

You can use a different solver for vehicle routing. For example, check out the OR-Tools vehicle routing community app.

Nextmv routing app

The Nextmv routing app on marketplace provides a low-code entry point to the Nextmv platform and is the recommended starting point when solving a vehicle routing problem. It is a pre-built app with out-of-the-box functionality available now on Nextmv Cloud. (See the vehicle routing features page for a complete list of what's included).

Once you subscribe to the Nextmv routing app on marketplace, you can start running your model via the API.

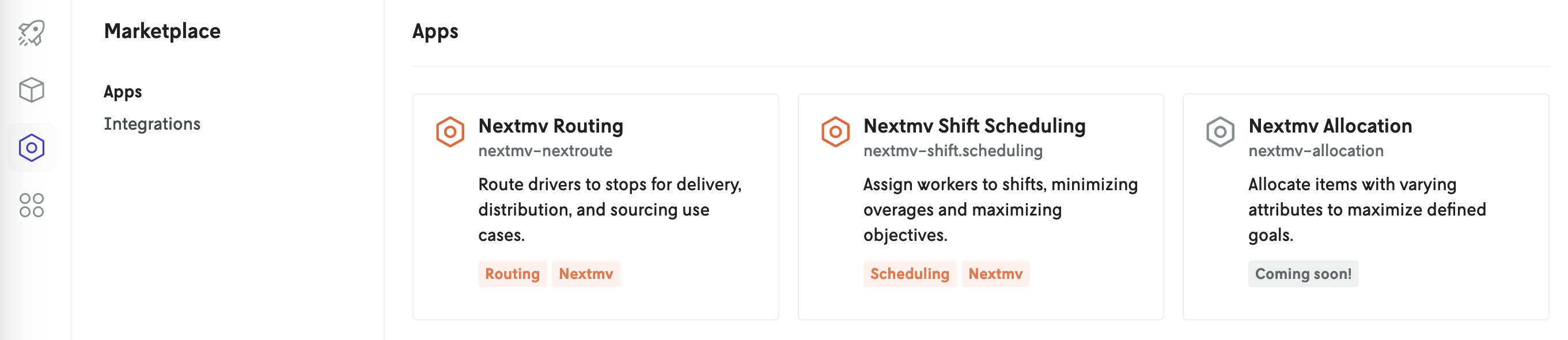

Screenshot of the Nextmv Markeplace landing page showing available apps.

The Nextmv routing app is based on the nextroute template that is available via platform. This makes migrating from the marketplace app to a more custom app simple.

routing_app

After subscribing to the marketplace app, you are ready to run.

Note, all requests must be authenticated with Bearer Authentication. Make sure your request has a header containing your Nextmv Cloud API key, as such:

  • Key: Authorization
  • Value: Bearer <YOUR-API-KEY>
Authorization: Bearer <YOUR-API-KEY>
Copy

Use this endpoint to submit a run:

POSThttps://api.cloud.nextmv.io/v1/applications/{application_id}/runs

New application run.

Create new application run.

For the payload, use only the "input" key, and you can submit an object similar to this one, which follows the input schema:

{
  "defaults": {
    "vehicles": {
      "capacity": {
        "bunnies": 20,
        "rabbits": 10
      },
      "start_location": {
        "lat": 35.791729813680874,
        "lon": -78.7401685145487
      },
      "end_location": {
        "lat": 35.791729813680874,
        "lon": -78.7401685145487
      },
      "speed": 10
    },
    "stops": {
      "duration": 300,
      "quantity": {
        "bunnies": -1,
        "rabbits": -1
      },
      "unplanned_penalty": 200000,
      "target_arrival_time": "2023-01-01T10:00:00Z",
      "early_arrival_time_penalty": 1.5,
      "late_arrival_time_penalty": 1.5
    }
  },
  "stops": [
    {
      "id": "s1",
      "location": {
        "lon": -78.90919,
        "lat": 35.72389
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s2",
      "location": {
        "lon": -78.813862,
        "lat": 35.75712
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s3",
      "location": {
        "lon": -78.92996,
        "lat": 35.932795
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s4",
      "location": {
        "lon": -78.505745,
        "lat": 35.77772
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s5",
      "location": {
        "lon": -78.75084,
        "lat": 35.732995
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s6",
      "location": {
        "lon": -78.788025,
        "lat": 35.813025
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s7",
      "location": {
        "lon": -78.749391,
        "lat": 35.74261
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s8",
      "location": {
        "lon": -78.94658,
        "lat": 36.039135
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s9",
      "location": {
        "lon": -78.64972,
        "lat": 35.64796
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s10",
      "location": {
        "lon": -78.747955,
        "lat": 35.672955
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s11",
      "location": {
        "lon": -78.83403,
        "lat": 35.77013
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s12",
      "location": {
        "lon": -78.864465,
        "lat": 35.782855
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s13",
      "location": {
        "lon": -78.952142,
        "lat": 35.88029
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s14",
      "location": {
        "lon": -78.52748,
        "lat": 35.961465
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s15",
      "location": {
        "lon": -78.89832,
        "lat": 35.83202
      }
    },
    {
      "id": "s16",
      "location": {
        "lon": -78.63216,
        "lat": 35.83458
      }
    },
    {
      "id": "s17",
      "location": {
        "lon": -78.76063,
        "lat": 35.67337
      }
    },
    {
      "id": "s18",
      "location": {
        "lon": -78.911485,
        "lat": 36.009015
      }
    },
    {
      "id": "s19",
      "location": {
        "lon": -78.522705,
        "lat": 35.93663
      }
    },
    {
      "id": "s20",
      "location": {
        "lon": -78.995162,
        "lat": 35.97414
      }
    },
    {
      "id": "s21",
      "location": {
        "lon": -78.50509,
        "lat": 35.7606
      }
    },
    {
      "id": "s22",
      "location": {
        "lon": -78.828547,
        "lat": 35.962635
      },
      "precedes": ["s16", "s23"]
    },
    {
      "id": "s23",
      "location": {
        "lon": -78.60914,
        "lat": 35.84616
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ]
    },
    {
      "id": "s24",
      "location": {
        "lon": -78.65521,
        "lat": 35.740605
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ],
      "succeeds": "s25"
    },
    {
      "id": "s25",
      "location": {
        "lon": -78.92051,
        "lat": 35.887575
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ],
      "precedes": "s26"
    },
    {
      "id": "s26",
      "location": {
        "lon": -78.84058,
        "lat": 35.823865
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ]
    }
  ],
  "vehicles": [
    {
      "id": "vehicle-0",
      "start_time": "2023-01-01T06:00:00-06:00",
      "end_time": "2023-01-01T10:00:00-06:00",
      "activation_penalty": 4000,
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "vehicle-1",
      "start_time": "2023-01-01T10:00:00-06:00",
      "end_time": "2023-01-01T16:00:00-06:00",
      "max_duration": 21000,
      "compatibility_attributes": ["basic"]
    }
  ]
}
Copy

You can also specify "options" in the payload, which will override the default options. All values must be a string. Visit the options section for more information. This is a sample of options that can be passed:

{
  "input": {},
  "options": {
    "solve.duration": "3s",
    "solve.iterations": "50",
    "model.constraints.disable.capacity": "true"
  }
}
Copy

Here is a curl command that summarizes the request:

curl -X 'POST' \
  'https://api.cloud.nextmv.io/v1/applications/{application_id}/runs?instance_id=latest' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer $API_KEY' \
  -H 'Content-Type: application/json' \
  -d '{
    "input": $INPUT,
    "options": $OPTIONS
  }'
Copy

After the run is submitted, you will obtain a run_id. To retrieve the results you can:

  • Go to the Runs of the app and look for the run_id in the table. Clicking on the run_id will take you to the results page.
  • Use the endpoint below to get the results, using the run_id. You should use polling to query for the results. When you poll, the .metadata.status of the result will shown the run status. A status of succeeded means the run is complete and the results are available.
GEThttps://api.cloud.nextmv.io/v1/applications/{application_id}/runs/{run_id}

Get run result.

Get the result of a run.

Here is a curl command that summarizes the request:

curl -sS -L -X GET \
  "https://api.cloud.nextmv.io/v1/applications/$APP_ID/runs/$RUN_ID" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $NEXTMV_API_KEY" | jq
Copy

After running, a JSON payload that follows the output schema, should have been returned with the solution, similar to this one:

{
  "options": {
    "check": {
      "duration": 30000000000,
      "verbosity": "off"
    },
    "format": {
      "disable": {
        "progression": true
      }
    },
    "model": {
      "constraints": {
        "disable": {
          "attributes": false,
          "capacities": null,
          "capacity": false,
          "distance_limit": false,
          "groups": false,
          "maximum_duration": false,
          "maximum_stops": false,
          "maximum_wait_stop": false,
          "maximum_wait_vehicle": false,
          "mixing_items": false,
          "precedence": false,
          "start_time_windows": false,
          "vehicle_end_time": false,
          "vehicle_start_time": false
        },
        "enable": {
          "cluster": false
        }
      },
      "objectives": {
        "capacities": "",
        "cluster": 0,
        "early_arrival_penalty": 1,
        "late_arrival_penalty": 1,
        "min_stops": 1,
        "travel_duration": 0,
        "unplanned_penalty": 1,
        "vehicle_activation_penalty": 1,
        "vehicles_duration": 1
      },
      "properties": {
        "disable": {
          "duration_groups": false,
          "durations": false,
          "initial_solution": false,
          "stop_duration_multipliers": false
        }
      },
      "validate": {
        "disable": {
          "resources": false,
          "start_time": false
        },
        "enable": {
          "matrix": false,
          "matrix_asymmetry_tolerance": 20
        }
      }
    },
    "solve": {
      "duration": 10000000000,
      "iterations": 50,
      "parallel_runs": 1,
      "run_deterministically": true,
      "start_solutions": 1
    }
  },
  "solutions": [
    {
      "objective": {
        "name": "1 * vehicle_activation_penalty + 1 * vehicles_duration + 1 * unplanned_penalty + 1 * early_arrival_penalty + 1 * late_arrival_penalty",
        "objectives": [
          {
            "base": 4000,
            "factor": 1,
            "name": "vehicle_activation_penalty",
            "value": 4000
          },
          {
            "base": 34394.3133084774,
            "factor": 1,
            "name": "vehicles_duration",
            "value": 34394.3133084774
          },
          {
            "base": 1400000,
            "factor": 1,
            "name": "unplanned_penalty",
            "value": 1400000
          },
          {
            "factor": 1,
            "name": "early_arrival_penalty",
            "value": 0
          },
          {
            "base": 621271.1251366138,
            "factor": 1,
            "name": "late_arrival_penalty",
            "value": 621271.1251366138
          }
        ],
        "value": 2059665.4384450912
      },
      "unplanned": [
        {
          "id": "s16",
          "location": {
            "lat": 35.83458,
            "lon": -78.63216
          }
        },
        {
          "id": "s22",
          "location": {
            "lat": 35.962635,
            "lon": -78.828547
          }
        },
        {
          "id": "s23",
          "location": {
            "lat": 35.84616,
            "lon": -78.60914
          }
        },
        {
          "id": "s24",
          "location": {
            "lat": 35.740605,
            "lon": -78.65521
          }
        },
        {
          "id": "s25",
          "location": {
            "lat": 35.887575,
            "lon": -78.92051
          }
        },
        {
          "id": "s26",
          "location": {
            "lat": 35.823865,
            "lon": -78.84058
          }
        },
        {
          "id": "s4",
          "location": {
            "lat": 35.77772,
            "lon": -78.505745
          }
        }
      ],
      "vehicles": [
        {
          "id": "vehicle-0",
          "route": [
            {
              "arrival_time": "2023-01-01T06:00:00-06:00",
              "cumulative_travel_duration": 0,
              "end_time": "2023-01-01T06:00:00-06:00",
              "start_time": "2023-01-01T06:00:00-06:00",
              "stop": {
                "id": "vehicle-0-start",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_duration": 0
            },
            {
              "arrival_time": "2023-01-01T06:09:12-06:00",
              "cumulative_travel_distance": 5524,
              "cumulative_travel_duration": 552,
              "duration": 300,
              "end_time": "2023-01-01T06:14:12-06:00",
              "late_arrival_duration": 7752,
              "start_time": "2023-01-01T06:09:12-06:00",
              "stop": {
                "id": "s7",
                "location": {
                  "lat": 35.74261,
                  "lon": -78.749391
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 5524,
              "travel_duration": 552
            },
            {
              "arrival_time": "2023-01-01T06:28:29-06:00",
              "cumulative_travel_distance": 14094,
              "cumulative_travel_duration": 1409,
              "duration": 300,
              "end_time": "2023-01-01T06:33:29-06:00",
              "late_arrival_duration": 8909,
              "start_time": "2023-01-01T06:28:29-06:00",
              "stop": {
                "id": "s6",
                "location": {
                  "lat": 35.813025,
                  "lon": -78.788025
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8570,
              "travel_duration": 857
            },
            {
              "arrival_time": "2023-01-01T06:49:20-06:00",
              "cumulative_travel_distance": 23604,
              "cumulative_travel_duration": 2360,
              "duration": 300,
              "end_time": "2023-01-01T06:54:20-06:00",
              "late_arrival_duration": 10160,
              "start_time": "2023-01-01T06:49:20-06:00",
              "stop": {
                "id": "s5",
                "location": {
                  "lat": 35.732995,
                  "lon": -78.75084
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 9510,
              "travel_duration": 951
            },
            {
              "arrival_time": "2023-01-01T07:05:29-06:00",
              "cumulative_travel_distance": 30292,
              "cumulative_travel_duration": 3029,
              "duration": 300,
              "end_time": "2023-01-01T07:10:29-06:00",
              "late_arrival_duration": 11129,
              "start_time": "2023-01-01T07:05:29-06:00",
              "stop": {
                "id": "s17",
                "location": {
                  "lat": 35.67337,
                  "lon": -78.76063
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 6688,
              "travel_duration": 668
            },
            {
              "arrival_time": "2023-01-01T07:34:43-06:00",
              "cumulative_travel_distance": 44835,
              "cumulative_travel_duration": 4483,
              "duration": 300,
              "end_time": "2023-01-01T07:39:43-06:00",
              "late_arrival_duration": 12883,
              "start_time": "2023-01-01T07:34:43-06:00",
              "stop": {
                "id": "s1",
                "location": {
                  "lat": 35.72389,
                  "lon": -78.90919
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 14543,
              "travel_duration": 1454
            },
            {
              "arrival_time": "2023-01-01T07:55:20-06:00",
              "cumulative_travel_distance": 54198,
              "cumulative_travel_duration": 5420,
              "duration": 300,
              "end_time": "2023-01-01T08:00:20-06:00",
              "late_arrival_duration": 14120,
              "start_time": "2023-01-01T07:55:20-06:00",
              "stop": {
                "id": "s2",
                "location": {
                  "lat": 35.75712,
                  "lon": -78.813862
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 9363,
              "travel_duration": 936
            },
            {
              "arrival_time": "2023-01-01T08:19:08-06:00",
              "cumulative_travel_distance": 65484,
              "cumulative_travel_duration": 6548,
              "duration": 300,
              "end_time": "2023-01-01T08:24:08-06:00",
              "late_arrival_duration": 15548,
              "start_time": "2023-01-01T08:19:08-06:00",
              "stop": {
                "id": "s15",
                "location": {
                  "lat": 35.83202,
                  "lon": -78.89832
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 11286,
              "travel_duration": 1128
            },
            {
              "arrival_time": "2023-01-01T08:43:25-06:00",
              "cumulative_travel_distance": 77046,
              "cumulative_travel_duration": 7705,
              "duration": 300,
              "end_time": "2023-01-01T08:48:25-06:00",
              "late_arrival_duration": 17005,
              "start_time": "2023-01-01T08:43:25-06:00",
              "stop": {
                "id": "s3",
                "location": {
                  "lat": 35.932795,
                  "lon": -78.92996
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 11562,
              "travel_duration": 1156
            },
            {
              "arrival_time": "2023-01-01T09:02:48-06:00",
              "cumulative_travel_distance": 85682,
              "cumulative_travel_duration": 8568,
              "duration": 300,
              "end_time": "2023-01-01T09:07:48-06:00",
              "late_arrival_duration": 18168,
              "start_time": "2023-01-01T09:02:48-06:00",
              "stop": {
                "id": "s18",
                "location": {
                  "lat": 36.009015,
                  "lon": -78.911485
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8636,
              "travel_duration": 863
            },
            {
              "arrival_time": "2023-01-01T09:55:35-06:00",
              "cumulative_travel_distance": 114350,
              "cumulative_travel_duration": 11435,
              "end_time": "2023-01-01T09:55:35-06:00",
              "start_time": "2023-01-01T09:55:35-06:00",
              "stop": {
                "id": "vehicle-0-end",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_distance": 28668,
              "travel_duration": 2866
            }
          ],
          "route_duration": 14135,
          "route_stops_duration": 2700,
          "route_travel_distance": 114350,
          "route_travel_duration": 11435
        },
        {
          "id": "vehicle-1",
          "route": [
            {
              "arrival_time": "2023-01-01T10:00:00-06:00",
              "cumulative_travel_duration": 0,
              "end_time": "2023-01-01T10:00:00-06:00",
              "start_time": "2023-01-01T10:00:00-06:00",
              "stop": {
                "id": "vehicle-1-start",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_duration": 0
            },
            {
              "arrival_time": "2023-01-01T10:14:40-06:00",
              "cumulative_travel_distance": 8801,
              "cumulative_travel_duration": 880,
              "duration": 300,
              "end_time": "2023-01-01T10:19:40-06:00",
              "late_arrival_duration": 22480,
              "start_time": "2023-01-01T10:14:40-06:00",
              "stop": {
                "id": "s11",
                "location": {
                  "lat": 35.77013,
                  "lon": -78.83403
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8801,
              "travel_duration": 880
            },
            {
              "arrival_time": "2023-01-01T10:24:48-06:00",
              "cumulative_travel_distance": 11889,
              "cumulative_travel_duration": 1188,
              "duration": 300,
              "end_time": "2023-01-01T10:29:48-06:00",
              "late_arrival_duration": 23088,
              "start_time": "2023-01-01T10:24:48-06:00",
              "stop": {
                "id": "s12",
                "location": {
                  "lat": 35.782855,
                  "lon": -78.864465
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 3088,
              "travel_duration": 308
            },
            {
              "arrival_time": "2023-01-01T10:56:41-06:00",
              "cumulative_travel_distance": 28011,
              "cumulative_travel_duration": 2801,
              "duration": 300,
              "end_time": "2023-01-01T11:01:41-06:00",
              "late_arrival_duration": 25001,
              "start_time": "2023-01-01T10:56:41-06:00",
              "stop": {
                "id": "s10",
                "location": {
                  "lat": 35.672955,
                  "lon": -78.747955
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 16122,
              "travel_duration": 1612
            },
            {
              "arrival_time": "2023-01-01T11:17:11-06:00",
              "cumulative_travel_distance": 37310,
              "cumulative_travel_duration": 3731,
              "duration": 300,
              "end_time": "2023-01-01T11:22:11-06:00",
              "late_arrival_duration": 26231,
              "start_time": "2023-01-01T11:17:11-06:00",
              "stop": {
                "id": "s9",
                "location": {
                  "lat": 35.64796,
                  "lon": -78.64972
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 9299,
              "travel_duration": 929
            },
            {
              "arrival_time": "2023-01-01T11:52:20-06:00",
              "cumulative_travel_distance": 55404,
              "cumulative_travel_duration": 5540,
              "duration": 300,
              "end_time": "2023-01-01T11:57:20-06:00",
              "late_arrival_duration": 28340,
              "start_time": "2023-01-01T11:52:20-06:00",
              "stop": {
                "id": "s21",
                "location": {
                  "lat": 35.7606,
                  "lon": -78.50509
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 18094,
              "travel_duration": 1809
            },
            {
              "arrival_time": "2023-01-01T12:34:43-06:00",
              "cumulative_travel_distance": 77830,
              "cumulative_travel_duration": 7783,
              "duration": 300,
              "end_time": "2023-01-01T12:39:43-06:00",
              "late_arrival_duration": 30883,
              "start_time": "2023-01-01T12:34:43-06:00",
              "stop": {
                "id": "s14",
                "location": {
                  "lat": 35.961465,
                  "lon": -78.52748
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 22426,
              "travel_duration": 2242
            },
            {
              "arrival_time": "2023-01-01T12:44:22-06:00",
              "cumulative_travel_distance": 80624,
              "cumulative_travel_duration": 8062,
              "duration": 300,
              "end_time": "2023-01-01T12:49:22-06:00",
              "late_arrival_duration": 31462,
              "start_time": "2023-01-01T12:44:22-06:00",
              "stop": {
                "id": "s19",
                "location": {
                  "lat": 35.93663,
                  "lon": -78.522705
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 2794,
              "travel_duration": 279
            },
            {
              "arrival_time": "2023-01-01T13:54:40-06:00",
              "cumulative_travel_distance": 119804,
              "cumulative_travel_duration": 11980,
              "duration": 300,
              "end_time": "2023-01-01T13:59:40-06:00",
              "late_arrival_duration": 35680,
              "start_time": "2023-01-01T13:54:40-06:00",
              "stop": {
                "id": "s13",
                "location": {
                  "lat": 35.88029,
                  "lon": -78.952142
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 39180,
              "travel_duration": 3918
            },
            {
              "arrival_time": "2023-01-01T14:18:14-06:00",
              "cumulative_travel_distance": 130935,
              "cumulative_travel_duration": 13094,
              "duration": 300,
              "end_time": "2023-01-01T14:23:14-06:00",
              "late_arrival_duration": 37094,
              "start_time": "2023-01-01T14:18:14-06:00",
              "stop": {
                "id": "s20",
                "location": {
                  "lat": 35.97414,
                  "lon": -78.995162
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 11131,
              "travel_duration": 1113
            },
            {
              "arrival_time": "2023-01-01T14:37:18-06:00",
              "cumulative_travel_distance": 139380,
              "cumulative_travel_duration": 13938,
              "duration": 300,
              "end_time": "2023-01-01T14:42:18-06:00",
              "late_arrival_duration": 38238,
              "start_time": "2023-01-01T14:37:18-06:00",
              "stop": {
                "id": "s8",
                "location": {
                  "lat": 36.039135,
                  "lon": -78.94658
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8445,
              "travel_duration": 844
            },
            {
              "arrival_time": "2023-01-01T15:37:38-06:00",
              "cumulative_travel_distance": 172581,
              "cumulative_travel_duration": 17258,
              "end_time": "2023-01-01T15:37:38-06:00",
              "start_time": "2023-01-01T15:37:38-06:00",
              "stop": {
                "id": "vehicle-1-end",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_distance": 33201,
              "travel_duration": 3320
            }
          ],
          "route_duration": 20258,
          "route_stops_duration": 3000,
          "route_travel_distance": 172581,
          "route_travel_duration": 17258
        }
      ]
    }
  ],
  "statistics": {
    "result": {
      "custom": {
        "activated_vehicles": 2,
        "max_duration": 20258,
        "max_stops_in_vehicle": 10,
        "max_travel_duration": 17258,
        "min_duration": 14135,
        "min_stops_in_vehicle": 9,
        "min_travel_duration": 11435,
        "unplanned_stops": 7
      },
      "duration": 0.123,
      "value": 2059665.4384450912
    },
    "run": {
      "duration": 0.123,
      "iterations": 50
    },
    "schema": "v1"
  },
  "version": {
    "sdk": "VERSION"
  }
}
Copy

๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰

You are all set to keep exploring! Here are the next steps to continue your journey:

Platform

If you require a custom constraint or value function (beyond those provided out-of-the-box with the Nextmv routing app on marketplace) or would like to leverage the experimentation framework, then you will need to use the nextroute template rather than the marketplace app. Follow the steps below to get started with a template on the Nextmv platform.

Please make sure you already completed the steps described in the 5-minute getting started experience.

To test that the Nextmv CLI is correctly configured, please run the following command on your terminal. It will get some files that are necessary to work with the Nextmv Platform. You can see the expected output as well.

nextmv sdk install
Copy

Get started by initializing the nextroute template:

nextmv community clone -a go-nextroute
Copy

Change directories into the nextroute folder.

cd go-nextroute
Copy

You should see the input.json and main.go files, similar to these ones:

{
  "defaults": {
    "vehicles": {
      "capacity": {
        "bunnies": 20,
        "rabbits": 10
      },
      "start_location": {
        "lat": 35.791729813680874,
        "lon": -78.7401685145487
      },
      "end_location": {
        "lat": 35.791729813680874,
        "lon": -78.7401685145487
      },
      "speed": 10
    },
    "stops": {
      "duration": 300,
      "quantity": {
        "bunnies": -1,
        "rabbits": -1
      },
      "unplanned_penalty": 200000,
      "target_arrival_time": "2023-01-01T10:00:00Z",
      "early_arrival_time_penalty": 1.5,
      "late_arrival_time_penalty": 1.5
    }
  },
  "stops": [
    {
      "id": "s1",
      "location": {
        "lon": -78.90919,
        "lat": 35.72389
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s2",
      "location": {
        "lon": -78.813862,
        "lat": 35.75712
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s3",
      "location": {
        "lon": -78.92996,
        "lat": 35.932795
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s4",
      "location": {
        "lon": -78.505745,
        "lat": 35.77772
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s5",
      "location": {
        "lon": -78.75084,
        "lat": 35.732995
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s6",
      "location": {
        "lon": -78.788025,
        "lat": 35.813025
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s7",
      "location": {
        "lon": -78.749391,
        "lat": 35.74261
      },
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "s8",
      "location": {
        "lon": -78.94658,
        "lat": 36.039135
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s9",
      "location": {
        "lon": -78.64972,
        "lat": 35.64796
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s10",
      "location": {
        "lon": -78.747955,
        "lat": 35.672955
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s11",
      "location": {
        "lon": -78.83403,
        "lat": 35.77013
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s12",
      "location": {
        "lon": -78.864465,
        "lat": 35.782855
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s13",
      "location": {
        "lon": -78.952142,
        "lat": 35.88029
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s14",
      "location": {
        "lon": -78.52748,
        "lat": 35.961465
      },
      "compatibility_attributes": ["basic"]
    },
    {
      "id": "s15",
      "location": {
        "lon": -78.89832,
        "lat": 35.83202
      }
    },
    {
      "id": "s16",
      "location": {
        "lon": -78.63216,
        "lat": 35.83458
      }
    },
    {
      "id": "s17",
      "location": {
        "lon": -78.76063,
        "lat": 35.67337
      }
    },
    {
      "id": "s18",
      "location": {
        "lon": -78.911485,
        "lat": 36.009015
      }
    },
    {
      "id": "s19",
      "location": {
        "lon": -78.522705,
        "lat": 35.93663
      }
    },
    {
      "id": "s20",
      "location": {
        "lon": -78.995162,
        "lat": 35.97414
      }
    },
    {
      "id": "s21",
      "location": {
        "lon": -78.50509,
        "lat": 35.7606
      }
    },
    {
      "id": "s22",
      "location": {
        "lon": -78.828547,
        "lat": 35.962635
      },
      "precedes": ["s16", "s23"]
    },
    {
      "id": "s23",
      "location": {
        "lon": -78.60914,
        "lat": 35.84616
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ]
    },
    {
      "id": "s24",
      "location": {
        "lon": -78.65521,
        "lat": 35.740605
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ],
      "succeeds": "s25"
    },
    {
      "id": "s25",
      "location": {
        "lon": -78.92051,
        "lat": 35.887575
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ],
      "precedes": "s26"
    },
    {
      "id": "s26",
      "location": {
        "lon": -78.84058,
        "lat": 35.823865
      },
      "start_time_window": [
        "2023-01-01T09:00:00-06:00",
        "2023-01-01T09:30:00-06:00"
      ]
    }
  ],
  "vehicles": [
    {
      "id": "vehicle-0",
      "start_time": "2023-01-01T06:00:00-06:00",
      "end_time": "2023-01-01T10:00:00-06:00",
      "activation_penalty": 4000,
      "compatibility_attributes": ["premium"]
    },
    {
      "id": "vehicle-1",
      "start_time": "2023-01-01T10:00:00-06:00",
      "end_time": "2023-01-01T16:00:00-06:00",
      "max_duration": 21000,
      "compatibility_attributes": ["basic"]
    }
  ]
}
Copy

Please note that the input.json file follows the input schema.

Run the code, specifying the file to be used as input, and the file to be used as output, along with other options.

go run . -runner.input.path input.json -runner.output.path output.json -solve.duration 10s
Copy

After running, an output.json file, that follows the output schema, should have been created with the solution, similar to this one:

{
  "options": {
    "check": {
      "duration": 30000000000,
      "verbosity": "off"
    },
    "format": {
      "disable": {
        "progression": true
      }
    },
    "model": {
      "constraints": {
        "disable": {
          "attributes": false,
          "capacities": null,
          "capacity": false,
          "distance_limit": false,
          "groups": false,
          "maximum_duration": false,
          "maximum_stops": false,
          "maximum_wait_stop": false,
          "maximum_wait_vehicle": false,
          "mixing_items": false,
          "precedence": false,
          "start_time_windows": false,
          "vehicle_end_time": false,
          "vehicle_start_time": false
        },
        "enable": {
          "cluster": false
        }
      },
      "objectives": {
        "capacities": "",
        "cluster": 0,
        "early_arrival_penalty": 1,
        "late_arrival_penalty": 1,
        "min_stops": 1,
        "travel_duration": 0,
        "unplanned_penalty": 1,
        "vehicle_activation_penalty": 1,
        "vehicles_duration": 1
      },
      "properties": {
        "disable": {
          "duration_groups": false,
          "durations": false,
          "initial_solution": false,
          "stop_duration_multipliers": false
        }
      },
      "validate": {
        "disable": {
          "resources": false,
          "start_time": false
        },
        "enable": {
          "matrix": false,
          "matrix_asymmetry_tolerance": 20
        }
      }
    },
    "solve": {
      "duration": 10000000000,
      "iterations": 50,
      "parallel_runs": 1,
      "run_deterministically": true,
      "start_solutions": 1
    }
  },
  "solutions": [
    {
      "objective": {
        "name": "1 * vehicle_activation_penalty + 1 * vehicles_duration + 1 * unplanned_penalty + 1 * early_arrival_penalty + 1 * late_arrival_penalty",
        "objectives": [
          {
            "base": 4000,
            "factor": 1,
            "name": "vehicle_activation_penalty",
            "value": 4000
          },
          {
            "base": 34394.3133084774,
            "factor": 1,
            "name": "vehicles_duration",
            "value": 34394.3133084774
          },
          {
            "base": 1400000,
            "factor": 1,
            "name": "unplanned_penalty",
            "value": 1400000
          },
          {
            "factor": 1,
            "name": "early_arrival_penalty",
            "value": 0
          },
          {
            "base": 621271.1251366138,
            "factor": 1,
            "name": "late_arrival_penalty",
            "value": 621271.1251366138
          }
        ],
        "value": 2059665.4384450912
      },
      "unplanned": [
        {
          "id": "s16",
          "location": {
            "lat": 35.83458,
            "lon": -78.63216
          }
        },
        {
          "id": "s22",
          "location": {
            "lat": 35.962635,
            "lon": -78.828547
          }
        },
        {
          "id": "s23",
          "location": {
            "lat": 35.84616,
            "lon": -78.60914
          }
        },
        {
          "id": "s24",
          "location": {
            "lat": 35.740605,
            "lon": -78.65521
          }
        },
        {
          "id": "s25",
          "location": {
            "lat": 35.887575,
            "lon": -78.92051
          }
        },
        {
          "id": "s26",
          "location": {
            "lat": 35.823865,
            "lon": -78.84058
          }
        },
        {
          "id": "s4",
          "location": {
            "lat": 35.77772,
            "lon": -78.505745
          }
        }
      ],
      "vehicles": [
        {
          "id": "vehicle-0",
          "route": [
            {
              "arrival_time": "2023-01-01T06:00:00-06:00",
              "cumulative_travel_duration": 0,
              "end_time": "2023-01-01T06:00:00-06:00",
              "start_time": "2023-01-01T06:00:00-06:00",
              "stop": {
                "id": "vehicle-0-start",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_duration": 0
            },
            {
              "arrival_time": "2023-01-01T06:09:12-06:00",
              "cumulative_travel_distance": 5524,
              "cumulative_travel_duration": 552,
              "duration": 300,
              "end_time": "2023-01-01T06:14:12-06:00",
              "late_arrival_duration": 7752,
              "start_time": "2023-01-01T06:09:12-06:00",
              "stop": {
                "id": "s7",
                "location": {
                  "lat": 35.74261,
                  "lon": -78.749391
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 5524,
              "travel_duration": 552
            },
            {
              "arrival_time": "2023-01-01T06:28:29-06:00",
              "cumulative_travel_distance": 14094,
              "cumulative_travel_duration": 1409,
              "duration": 300,
              "end_time": "2023-01-01T06:33:29-06:00",
              "late_arrival_duration": 8909,
              "start_time": "2023-01-01T06:28:29-06:00",
              "stop": {
                "id": "s6",
                "location": {
                  "lat": 35.813025,
                  "lon": -78.788025
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8570,
              "travel_duration": 857
            },
            {
              "arrival_time": "2023-01-01T06:49:20-06:00",
              "cumulative_travel_distance": 23604,
              "cumulative_travel_duration": 2360,
              "duration": 300,
              "end_time": "2023-01-01T06:54:20-06:00",
              "late_arrival_duration": 10160,
              "start_time": "2023-01-01T06:49:20-06:00",
              "stop": {
                "id": "s5",
                "location": {
                  "lat": 35.732995,
                  "lon": -78.75084
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 9510,
              "travel_duration": 951
            },
            {
              "arrival_time": "2023-01-01T07:05:29-06:00",
              "cumulative_travel_distance": 30292,
              "cumulative_travel_duration": 3029,
              "duration": 300,
              "end_time": "2023-01-01T07:10:29-06:00",
              "late_arrival_duration": 11129,
              "start_time": "2023-01-01T07:05:29-06:00",
              "stop": {
                "id": "s17",
                "location": {
                  "lat": 35.67337,
                  "lon": -78.76063
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 6688,
              "travel_duration": 668
            },
            {
              "arrival_time": "2023-01-01T07:34:43-06:00",
              "cumulative_travel_distance": 44835,
              "cumulative_travel_duration": 4483,
              "duration": 300,
              "end_time": "2023-01-01T07:39:43-06:00",
              "late_arrival_duration": 12883,
              "start_time": "2023-01-01T07:34:43-06:00",
              "stop": {
                "id": "s1",
                "location": {
                  "lat": 35.72389,
                  "lon": -78.90919
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 14543,
              "travel_duration": 1454
            },
            {
              "arrival_time": "2023-01-01T07:55:20-06:00",
              "cumulative_travel_distance": 54198,
              "cumulative_travel_duration": 5420,
              "duration": 300,
              "end_time": "2023-01-01T08:00:20-06:00",
              "late_arrival_duration": 14120,
              "start_time": "2023-01-01T07:55:20-06:00",
              "stop": {
                "id": "s2",
                "location": {
                  "lat": 35.75712,
                  "lon": -78.813862
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 9363,
              "travel_duration": 936
            },
            {
              "arrival_time": "2023-01-01T08:19:08-06:00",
              "cumulative_travel_distance": 65484,
              "cumulative_travel_duration": 6548,
              "duration": 300,
              "end_time": "2023-01-01T08:24:08-06:00",
              "late_arrival_duration": 15548,
              "start_time": "2023-01-01T08:19:08-06:00",
              "stop": {
                "id": "s15",
                "location": {
                  "lat": 35.83202,
                  "lon": -78.89832
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 11286,
              "travel_duration": 1128
            },
            {
              "arrival_time": "2023-01-01T08:43:25-06:00",
              "cumulative_travel_distance": 77046,
              "cumulative_travel_duration": 7705,
              "duration": 300,
              "end_time": "2023-01-01T08:48:25-06:00",
              "late_arrival_duration": 17005,
              "start_time": "2023-01-01T08:43:25-06:00",
              "stop": {
                "id": "s3",
                "location": {
                  "lat": 35.932795,
                  "lon": -78.92996
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 11562,
              "travel_duration": 1156
            },
            {
              "arrival_time": "2023-01-01T09:02:48-06:00",
              "cumulative_travel_distance": 85682,
              "cumulative_travel_duration": 8568,
              "duration": 300,
              "end_time": "2023-01-01T09:07:48-06:00",
              "late_arrival_duration": 18168,
              "start_time": "2023-01-01T09:02:48-06:00",
              "stop": {
                "id": "s18",
                "location": {
                  "lat": 36.009015,
                  "lon": -78.911485
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8636,
              "travel_duration": 863
            },
            {
              "arrival_time": "2023-01-01T09:55:35-06:00",
              "cumulative_travel_distance": 114350,
              "cumulative_travel_duration": 11435,
              "end_time": "2023-01-01T09:55:35-06:00",
              "start_time": "2023-01-01T09:55:35-06:00",
              "stop": {
                "id": "vehicle-0-end",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_distance": 28668,
              "travel_duration": 2866
            }
          ],
          "route_duration": 14135,
          "route_stops_duration": 2700,
          "route_travel_distance": 114350,
          "route_travel_duration": 11435
        },
        {
          "id": "vehicle-1",
          "route": [
            {
              "arrival_time": "2023-01-01T10:00:00-06:00",
              "cumulative_travel_duration": 0,
              "end_time": "2023-01-01T10:00:00-06:00",
              "start_time": "2023-01-01T10:00:00-06:00",
              "stop": {
                "id": "vehicle-1-start",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_duration": 0
            },
            {
              "arrival_time": "2023-01-01T10:14:40-06:00",
              "cumulative_travel_distance": 8801,
              "cumulative_travel_duration": 880,
              "duration": 300,
              "end_time": "2023-01-01T10:19:40-06:00",
              "late_arrival_duration": 22480,
              "start_time": "2023-01-01T10:14:40-06:00",
              "stop": {
                "id": "s11",
                "location": {
                  "lat": 35.77013,
                  "lon": -78.83403
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8801,
              "travel_duration": 880
            },
            {
              "arrival_time": "2023-01-01T10:24:48-06:00",
              "cumulative_travel_distance": 11889,
              "cumulative_travel_duration": 1188,
              "duration": 300,
              "end_time": "2023-01-01T10:29:48-06:00",
              "late_arrival_duration": 23088,
              "start_time": "2023-01-01T10:24:48-06:00",
              "stop": {
                "id": "s12",
                "location": {
                  "lat": 35.782855,
                  "lon": -78.864465
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 3088,
              "travel_duration": 308
            },
            {
              "arrival_time": "2023-01-01T10:56:41-06:00",
              "cumulative_travel_distance": 28011,
              "cumulative_travel_duration": 2801,
              "duration": 300,
              "end_time": "2023-01-01T11:01:41-06:00",
              "late_arrival_duration": 25001,
              "start_time": "2023-01-01T10:56:41-06:00",
              "stop": {
                "id": "s10",
                "location": {
                  "lat": 35.672955,
                  "lon": -78.747955
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 16122,
              "travel_duration": 1612
            },
            {
              "arrival_time": "2023-01-01T11:17:11-06:00",
              "cumulative_travel_distance": 37310,
              "cumulative_travel_duration": 3731,
              "duration": 300,
              "end_time": "2023-01-01T11:22:11-06:00",
              "late_arrival_duration": 26231,
              "start_time": "2023-01-01T11:17:11-06:00",
              "stop": {
                "id": "s9",
                "location": {
                  "lat": 35.64796,
                  "lon": -78.64972
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 9299,
              "travel_duration": 929
            },
            {
              "arrival_time": "2023-01-01T11:52:20-06:00",
              "cumulative_travel_distance": 55404,
              "cumulative_travel_duration": 5540,
              "duration": 300,
              "end_time": "2023-01-01T11:57:20-06:00",
              "late_arrival_duration": 28340,
              "start_time": "2023-01-01T11:52:20-06:00",
              "stop": {
                "id": "s21",
                "location": {
                  "lat": 35.7606,
                  "lon": -78.50509
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 18094,
              "travel_duration": 1809
            },
            {
              "arrival_time": "2023-01-01T12:34:43-06:00",
              "cumulative_travel_distance": 77830,
              "cumulative_travel_duration": 7783,
              "duration": 300,
              "end_time": "2023-01-01T12:39:43-06:00",
              "late_arrival_duration": 30883,
              "start_time": "2023-01-01T12:34:43-06:00",
              "stop": {
                "id": "s14",
                "location": {
                  "lat": 35.961465,
                  "lon": -78.52748
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 22426,
              "travel_duration": 2242
            },
            {
              "arrival_time": "2023-01-01T12:44:22-06:00",
              "cumulative_travel_distance": 80624,
              "cumulative_travel_duration": 8062,
              "duration": 300,
              "end_time": "2023-01-01T12:49:22-06:00",
              "late_arrival_duration": 31462,
              "start_time": "2023-01-01T12:44:22-06:00",
              "stop": {
                "id": "s19",
                "location": {
                  "lat": 35.93663,
                  "lon": -78.522705
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 2794,
              "travel_duration": 279
            },
            {
              "arrival_time": "2023-01-01T13:54:40-06:00",
              "cumulative_travel_distance": 119804,
              "cumulative_travel_duration": 11980,
              "duration": 300,
              "end_time": "2023-01-01T13:59:40-06:00",
              "late_arrival_duration": 35680,
              "start_time": "2023-01-01T13:54:40-06:00",
              "stop": {
                "id": "s13",
                "location": {
                  "lat": 35.88029,
                  "lon": -78.952142
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 39180,
              "travel_duration": 3918
            },
            {
              "arrival_time": "2023-01-01T14:18:14-06:00",
              "cumulative_travel_distance": 130935,
              "cumulative_travel_duration": 13094,
              "duration": 300,
              "end_time": "2023-01-01T14:23:14-06:00",
              "late_arrival_duration": 37094,
              "start_time": "2023-01-01T14:18:14-06:00",
              "stop": {
                "id": "s20",
                "location": {
                  "lat": 35.97414,
                  "lon": -78.995162
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 11131,
              "travel_duration": 1113
            },
            {
              "arrival_time": "2023-01-01T14:37:18-06:00",
              "cumulative_travel_distance": 139380,
              "cumulative_travel_duration": 13938,
              "duration": 300,
              "end_time": "2023-01-01T14:42:18-06:00",
              "late_arrival_duration": 38238,
              "start_time": "2023-01-01T14:37:18-06:00",
              "stop": {
                "id": "s8",
                "location": {
                  "lat": 36.039135,
                  "lon": -78.94658
                }
              },
              "target_arrival_time": "2023-01-01T04:00:00-06:00",
              "travel_distance": 8445,
              "travel_duration": 844
            },
            {
              "arrival_time": "2023-01-01T15:37:38-06:00",
              "cumulative_travel_distance": 172581,
              "cumulative_travel_duration": 17258,
              "end_time": "2023-01-01T15:37:38-06:00",
              "start_time": "2023-01-01T15:37:38-06:00",
              "stop": {
                "id": "vehicle-1-end",
                "location": {
                  "lat": 35.791729813680874,
                  "lon": -78.7401685145487
                }
              },
              "travel_distance": 33201,
              "travel_duration": 3320
            }
          ],
          "route_duration": 20258,
          "route_stops_duration": 3000,
          "route_travel_distance": 172581,
          "route_travel_duration": 17258
        }
      ]
    }
  ],
  "statistics": {
    "result": {
      "custom": {
        "activated_vehicles": 2,
        "max_duration": 20258,
        "max_stops_in_vehicle": 10,
        "max_travel_duration": 17258,
        "min_duration": 14135,
        "min_stops_in_vehicle": 9,
        "min_travel_duration": 11435,
        "unplanned_stops": 7
      },
      "duration": 0.123,
      "value": 2059665.4384450912
    },
    "run": {
      "duration": 0.123,
      "iterations": 50
    },
    "schema": "v1"
  },
  "version": {
    "sdk": "VERSION"
  }
}
Copy

๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰ ๐ŸŽ‰

You are all set to keep exploring! Here are the next steps to continue your journey:

Defaults

defaults apply default properties to all vehicles and stops. Properties added to specific vehicles or stops override the default settings, when both are present. Please reference the vehicle schema and stop schema to see which features are configurable via defaults.

Here is an example of using features for vehicles and stops. A sample output obtained after solving the problem is also shown.

{
  "defaults": {
    "vehicles": {
      "speed": 15,
      "max_stops": 2,
      "start_time": "2023-01-01T12:00:00Z",
      "start_location": {
        "lon": 135.772695,
        "lat": 34.967146
      },
      "end_location": {
        "lon": 135.772695,
        "lat": 34.967146
      }
    },
    "stops": {
      "target_arrival_time": "2023-01-01T12:20:00Z",
      "duration": 300,
      "unplanned_penalty": 5000000,
      "early_arrival_time_penalty": 1.5,
      "late_arrival_time_penalty": 1.5
    }
  },
  "stops": [
    {
      "id": "Fushimi Inari Taisha",
      "location": { "lon": 135.772695, "lat": 34.967146 }
    },
    {
      "id": "Kiyomizu-dera",
      "location": { "lon": 135.78506, "lat": 34.994857 }
    },
    {
      "id": "Nijล Castle",
      "location": { "lon": 135.748134, "lat": 35.014239 }
    },
    {
      "id": "Kyoto Imperial Palace",
      "location": { "lon": 135.762057, "lat": 35.025431 },
      "compatibility_attributes": ["category_1"],
      "precedes": "Fushimi Inari Taisha"
    },
    {
      "id": "Gionmachi",
      "location": { "lon": 135.775682, "lat": 35.002457 },
      "compatibility_attributes": ["category_3"]
    },
    {
      "id": "Kinkaku-ji",
      "location": { "lon": 135.728898, "lat": 35.039705 },
      "compatibility_attributes": ["category_2"],
      "precedes": "Kiyomizu-dera"
    },
    {
      "id": "Arashiyama Bamboo Forest",
      "location": { "lon": 135.672009, "lat": 35.017209 },
      "compatibility_attributes": ["category_4"],
      "precedes": "Nijล Castle"
    }
  ],
  "vehicles": [
    {
      "id": "v1",
      "compatibility_attributes": ["category_1"]
    },
    {
      "id": "v2",
      "compatibility_attributes": ["category_2"]
    },
    {
      "id": "v3",
      "compatibility_attributes": ["category_3"]
    },
    {
      "id": "v4",
      "compatibility_attributes": ["category_4"]
    }
  ]
}
Copy

Visit the defaults schema for detailed information.

Options

All applications are configurable through options.

  • Model options change how the model is parsed from the input.
  • Runner options change how the runner outputs solutions and reads/writes data.
  • Solve options change the behavior of the solver.

Options can be configured when running locally with the Nextmv platform or when running remotely on Nextmv Cloud. Running remotely is possible with the Nextmv marketplace routing app or with a custom app that has been deployed.

Visit the options reference for detailed information on all the available options.

Options - running locally

  • CLI flags. They are added after the double-dash character (--). Consider the same example that was shown in the platform section for running the code from the template:
go run . -runner.input.path input.json -runner.output.path output.json -solve.duration 10s
Copy
  • Environment variables. To set an environment variable, convert its corresponding CLI flag to uppercase, replacing each period (.) with an underscore (_) and removing the leading dash (-). For example: -solve.duration is equivalent to SOLVE_DURATION. Here you can find the same example that was shown above. This time, however, we show how to use environment variables instead of CLI flags. Notice that there is no need for the double-dash character (--) anymore.
RUNNER_INPUT_PATH=input.json RUNNER_OUTPUT_PATH=output.json SOLVE_DURATION=10s go run .
Copy

If both an environment variable and its corresponding CLI flag are defined, the CLI flag will overwrite the environment variable.

Options - running remotely

Use the "options" key in the JSON payload when executing a run on Nextmv cloud. The leading dash (-) is removed from the option name, when compared to running locally. For example, -solve.duration on a local run is equivalent to solve.duration run remotely.

Note that all values should be set as a string, regardless of the type.

Here is an example of how to use options when running remotely:

{
  "input": {},
  "options": {
    "solve.duration": "3s",
    "solve.iterations": "50",
    "model.constraints.disable.capacity": "true"
  }
}
Copy

Options - output

Most options are parsed to the output, under the options key:

{
  "model": {
    "constraints": {
      "disable": {
        "attributes": false,
        "capacity": false,
        "capacities": null,
        "distance_limit": false,
        "groups": false,
        "maximum_duration": false,
        "maximum_stops": false,
        "maximum_wait_stop": false,
        "maximum_wait_vehicle": false,
        "mixing_items": false,
        "precedence": false,
        "vehicle_start_time": false,
        "vehicle_end_time": false,
        "start_time_windows": false
      },
      "enable": {
        "cluster": false
      }
    },
    "objectives": {
      "capacities": "",
      "min_stops": 1,
      "early_arrival_penalty": 1,
      "late_arrival_penalty": 1,
      "vehicle_activation_penalty": 1,
      "travel_duration": 0,
      "vehicles_duration": 1,
      "unplanned_penalty": 1,
      "cluster": 0
    },
    "properties": {
      "disable": {
        "durations": false,
        "stop_duration_multipliers": false,
        "duration_groups": false,
        "initial_solution": false
      }
    },
    "validate": {
      "disable": {
        "start_time": false,
        "resources": false
      },
      "enable": {
        "matrix": false,
        "matrix_asymmetry_tolerance": 20
      }
    }
  },
  "solve": {
    "iterations": 50,
    "duration": 10000000000,
    "parallel_runs": 1,
    "start_solutions": 1,
    "run_deterministically": true
  },
  "format": {
    "disable": {
      "progression": true
    }
  },
  "check": {
    "duration": 30000000000,
    "verbosity": "off"
  }
}
Copy

When working with platform, you may also modify the options in code, which would override the ones passed from the runner. Here is an example of how this is done and how the resulting output shows the modified options. Notice that options is modified multiple times inside the solver function.

// ยฉ 2019-present nextmv.io inc

// package main holds the implementation of the nextroute template.
package main

import (
	"context"
	"log"
	"time"

	"github.com/nextmv-io/nextroute"
	"github.com/nextmv-io/nextroute/check"
	"github.com/nextmv-io/nextroute/factory"
	"github.com/nextmv-io/nextroute/schema"
	"github.com/nextmv-io/sdk/run"
	runSchema "github.com/nextmv-io/sdk/run/schema"
)

func main() {
	runner := run.CLI(solver)
	err := runner.Run(context.Background())
	if err != nil {
		log.Fatal(err)
	}
}

type options struct {
	Model  factory.Options                `json:"model,omitempty"`
	Solve  nextroute.ParallelSolveOptions `json:"solve,omitempty"`
	Format nextroute.FormatOptions        `json:"format,omitempty"`
	Check  check.Options                  `json:"check,omitempty"`
}

func solver(
	ctx context.Context,
	input schema.Input,
	options options,
) (runSchema.Output, error) {
	// Customize options in the code.
	options.Model.Objectives.TravelDuration = 0.5
	options.Model.Objectives.UnplannedPenalty = 0.3
	options.Model.Constraints.Disable.Capacity = true
	options.Model.Constraints.Disable.Attributes = true
	options.Model.Constraints.Disable.Precedence = true
	options.Solve.Duration = time.Duration(11) * time.Second
	options.Solve.Iterations = 51
	options.Format.Disable.Progression = true

	model, err := factory.NewModel(input, options.Model)
	if err != nil {
		return runSchema.Output{}, err
	}

	solver, err := nextroute.NewParallelSolver(model)
	if err != nil {
		return runSchema.Output{}, err
	}

	solutions, err := solver.Solve(ctx, options.Solve)
	if err != nil {
		return runSchema.Output{}, err
	}
	last, err := solutions.Last()
	if err != nil {
		return runSchema.Output{}, err
	}

	output, err := check.Format(ctx, options, options.Check, solver, last)
	if err != nil {
		return runSchema.Output{}, err
	}
	output.Statistics.Result.Custom = factory.DefaultCustomResultStatistics(last)

	return output, nil
}
Copy

Page last updated

Go to on-page nav menu
